Storage And Weighing System For Catalyst Granule

Storage And Weighing System For Catalyst Granule

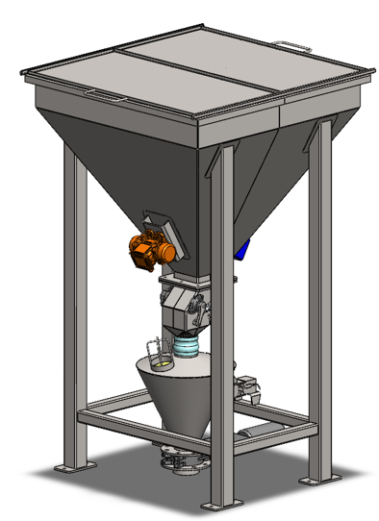

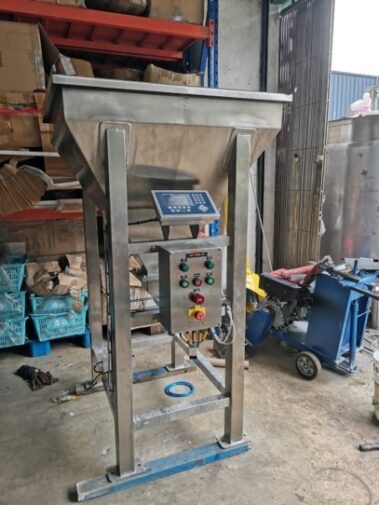

This is a Storage And Weighing System supplied to palm oil refinery customer for their Catalyst Granule. There is a temporary storage hopper on the most top. The hopper equipped with easy slide open cover for operator dumping in their granule product in 200L drum.

Customer request for a 20kg Gain In Weigh system with rough accuracy at 1%. One customized metering gate is designed and built at outlet of the storage hopper for product flow rate control and batching purpose. At the bottom of system, there is a small weighing hopper equipped with single load cell.

Since customer expectation on accuracy is not high, we do not use high cost equipment like rotary valve or screw conveyor. The customized metering gate and single load cell weighing hopper is designed at low cost and less maintenance.
